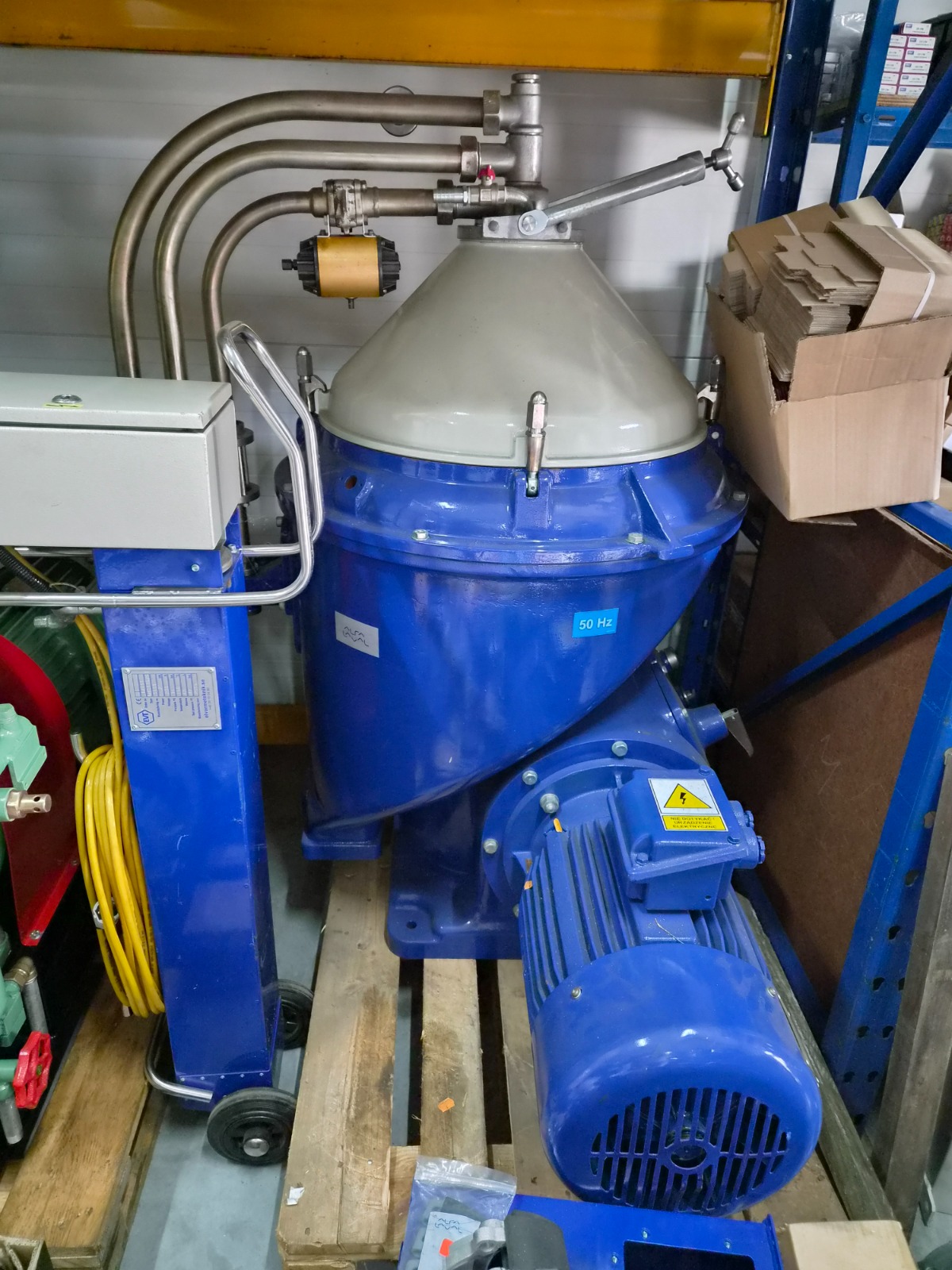

ALFA LAVAL Centrifugal Separator with Nishishiba 11 kW Motor and EVT Heater – 50 Hz
Categories: SEPARATORS
Part number: M_ ALFA LAVAL Centrifugal Separator
Availability: In Stock
| CONDITION | |
|---|---|
| KNOWN BRANDS |
- Delivery terms: EXW Orle, Poland.
- To add shipping please contact us directly.

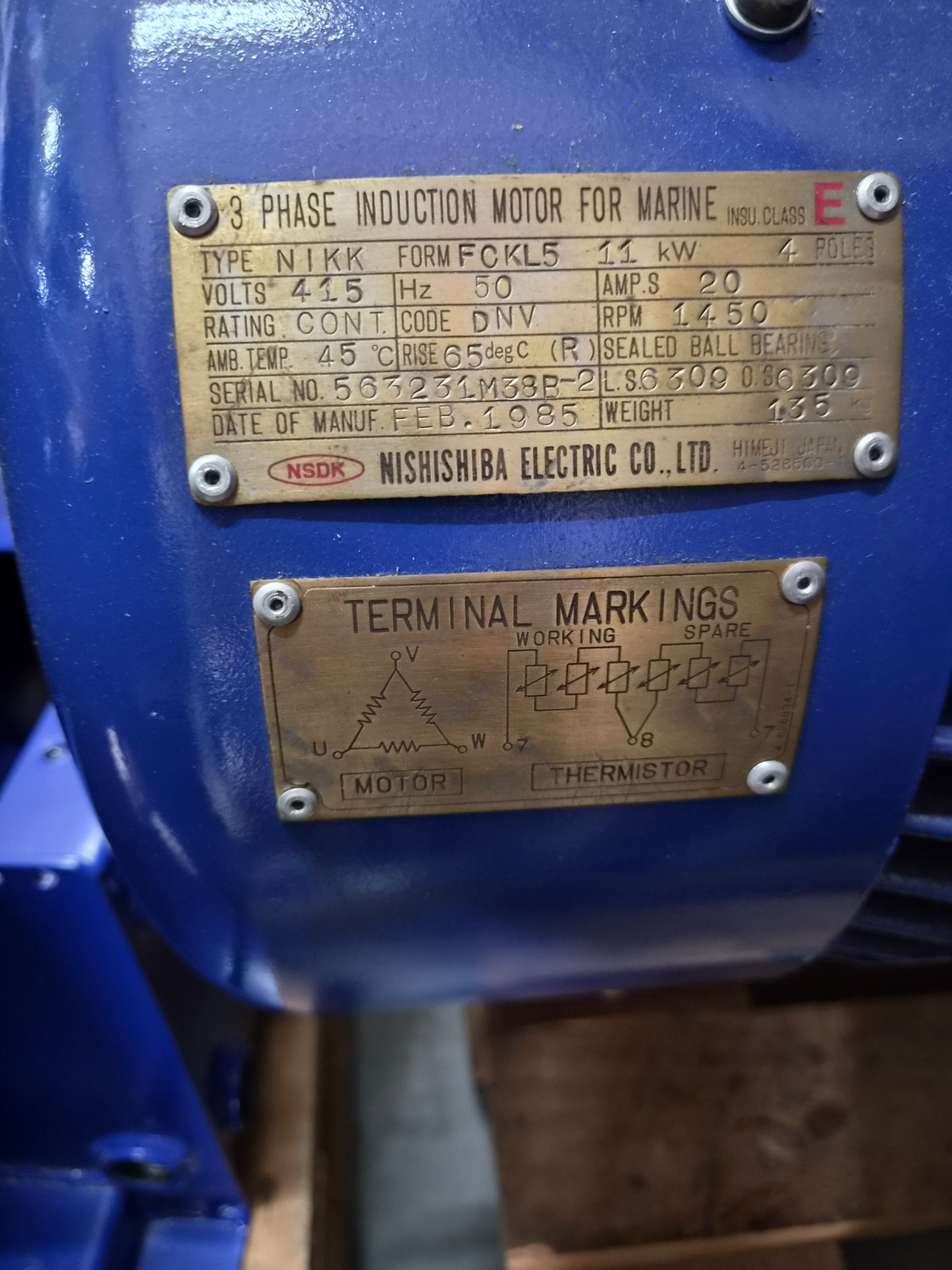

Drive motor specifications
| Parameter | Details |
|---|---|
| Manufacturer | Nishishiba Electric Co., Ltd. |
| Type | NIKK |
| Form | FCKL5 |
| Rated output | 11 kW |
| Power supply | 415 V / 50 Hz / 3-phase |
| Rated current | 20 A |
| Rated motor speed | 1,450 rpm |
| Number of poles | 4 |
| Duty | Continuous |
| Insulation class | E |
| Ambient temperature rating | 45°C |
| Date of manufacture — motor | February 1985 |

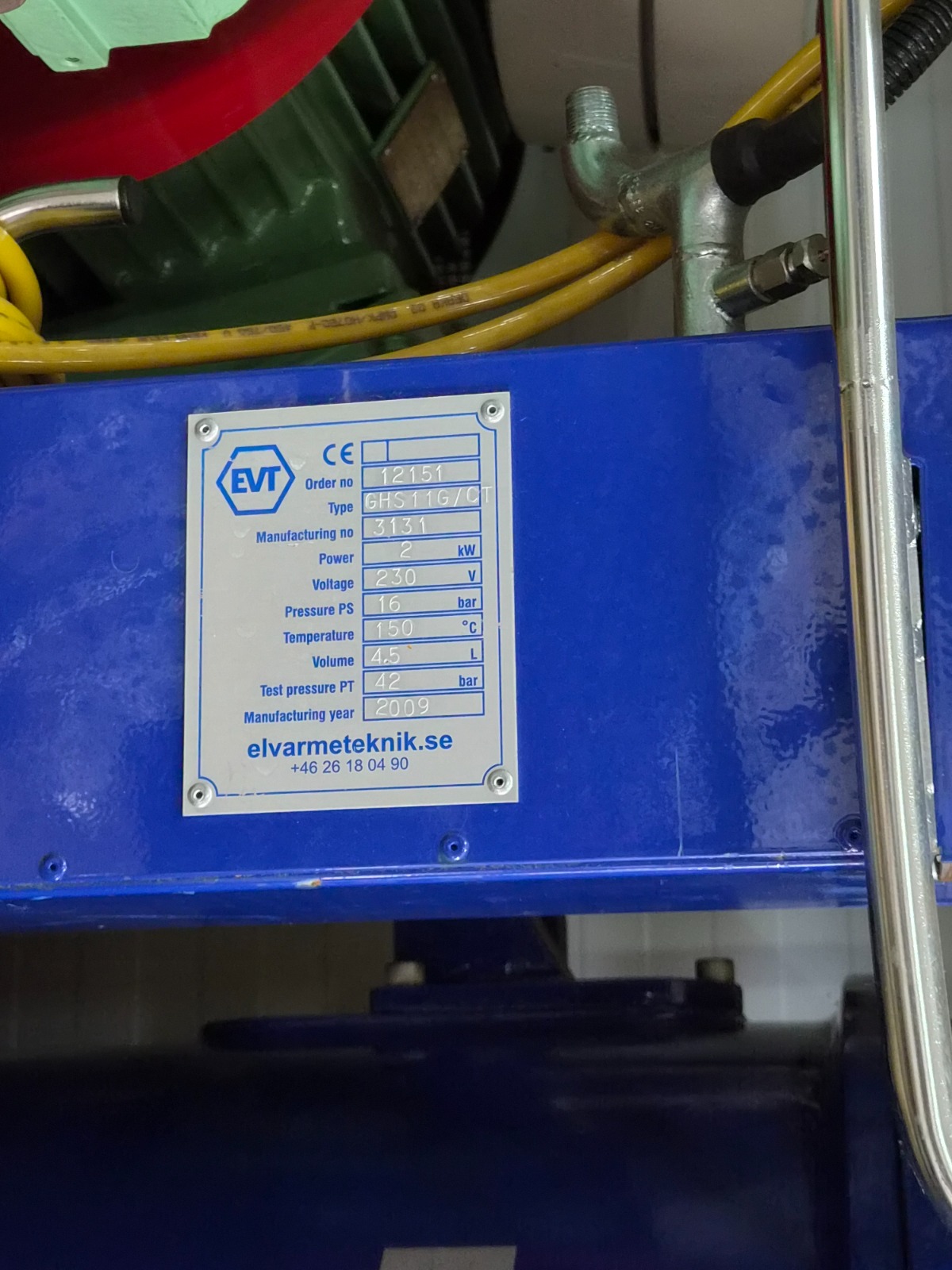

External heater specifications
| Parameter | Details |
|---|---|
| Manufacturer | EVT / Elvärmeteknik |
| Type | GHS11G/CT |
| Manufacturing number | 3131 |
| Heating power | 2 kW |
| Voltage | 230 V |
| Pressure PS | 16 bar |
| Nameplate temperature rating | 150°C |
| Internal volume | 4.5 litres |
| Year of manufacture — heater | 2009 |
