WAN AIR COMPRESSOR WAN-01 – 32 BAR – 50/60 HZ
Categories: COMPLETE, COMPRESSORS
Part number: M_COMPRESSOR WAN-01
Availability: In Stock
- Delivery terms: EXW Orle, Poland.
- To add shipping please contact us directly.

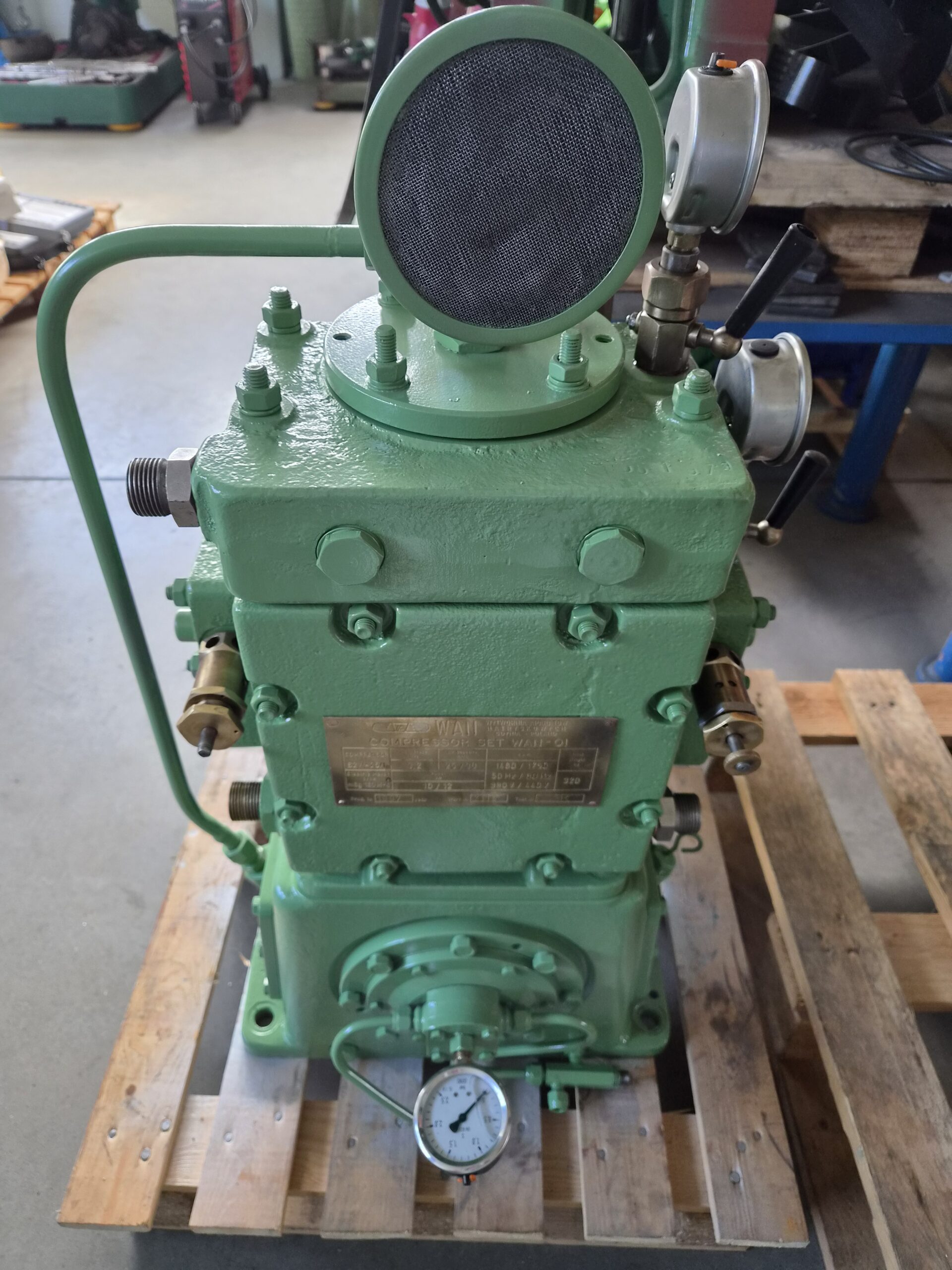

WAN air compressor manufactured by Wytwórnia Aparatów Natryskowych, Gdynia, Poland. The WAN-01 compressor set has a nominal pressure of 32 bar and a rated air capacity of 25 m³/h at 50 Hz or 30 m³/h at 60 Hz.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | WAN – Wytwórnia Aparatów Natryskowych |
| Compressor set model | WAN-01 |
| Country of manufacture | Poland |
| Nominal pressure | 3.2 MPa / 32 bar |
| Year of manufacture | 1997 |
| Works number | 2118 |
| Total set weight according to nameplate | 320 kg |

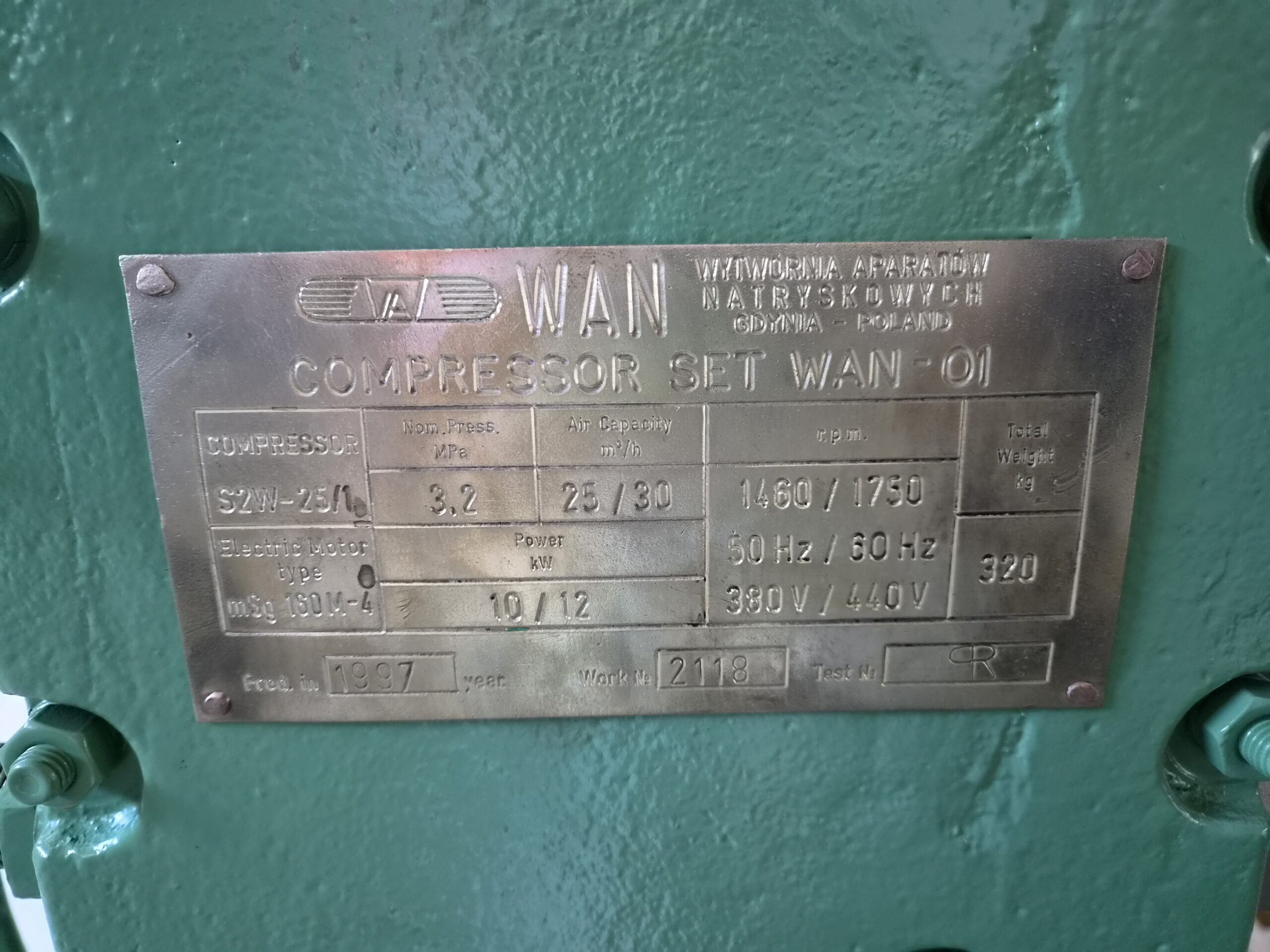

Operating parameters according to nameplate
| Parameter | 50 Hz | 60 Hz |
|---|---|---|
| Air capacity | 25 m³/h | 30 m³/h |
| Rated speed | 1,460 rpm | 1,750 rpm |
| Motor power | 10 kW | 12 kW |
| Voltage | 380 V | 440 V |
Category: Air Compressors
Brand: WAN
