HCP SF1-125 Marine Air Compressor – 95 m³/h, 30 bar

Categories: COMPLETE, COMPRESSORS

Part number: M_ HCP SF1-125

Availability: In Stock

CONDITION	RENOVATED
KNOWN BRANDS	CEGIELSKI, H. Cegielski–Poznań

Shipping:

Delivery terms: EXW Orle, Poland.
To add shipping please contact us directly.

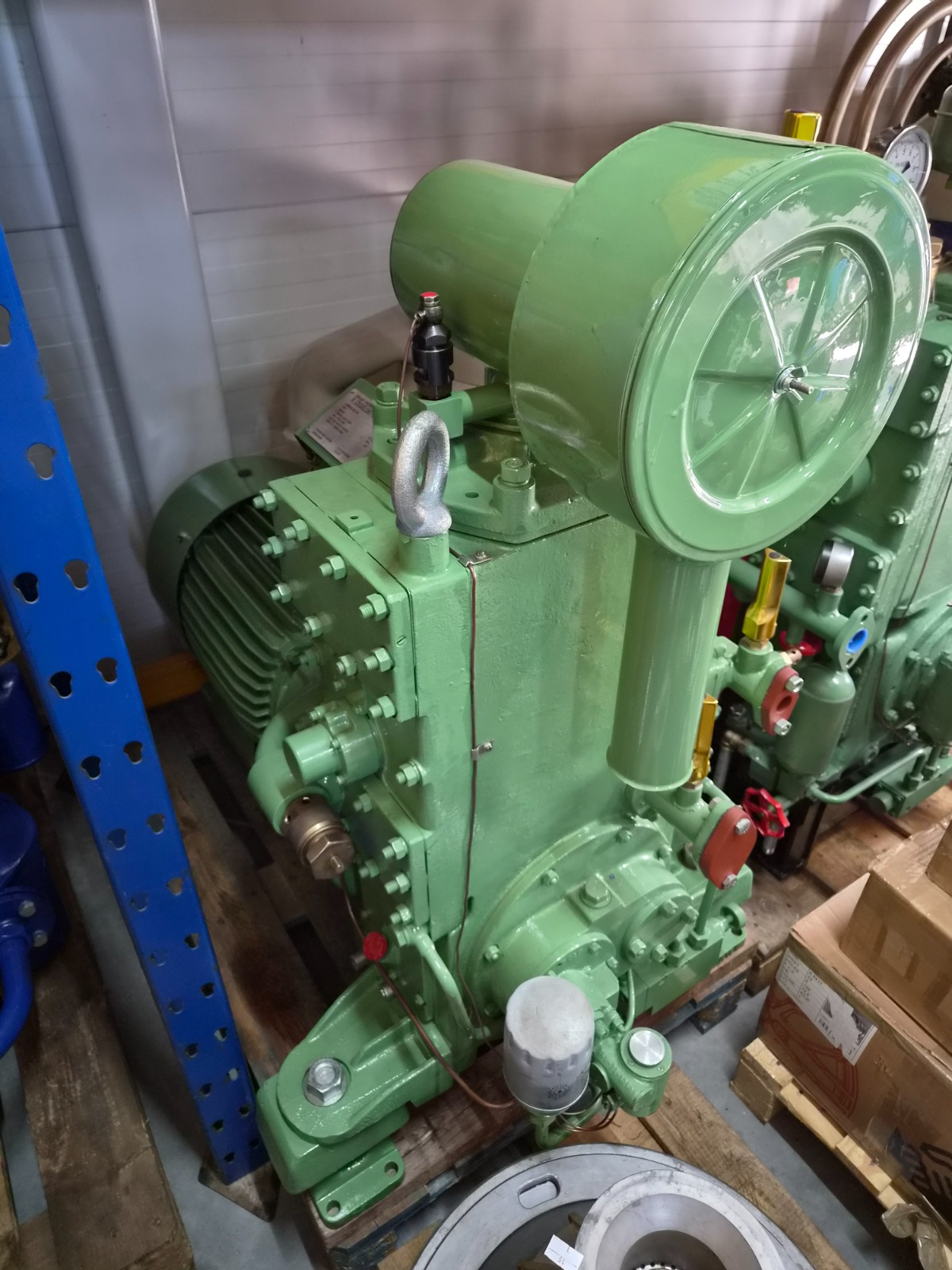

H. Cegielski–Poznań SF1-125 air compressor with electric motor for marine compressed-air installations.

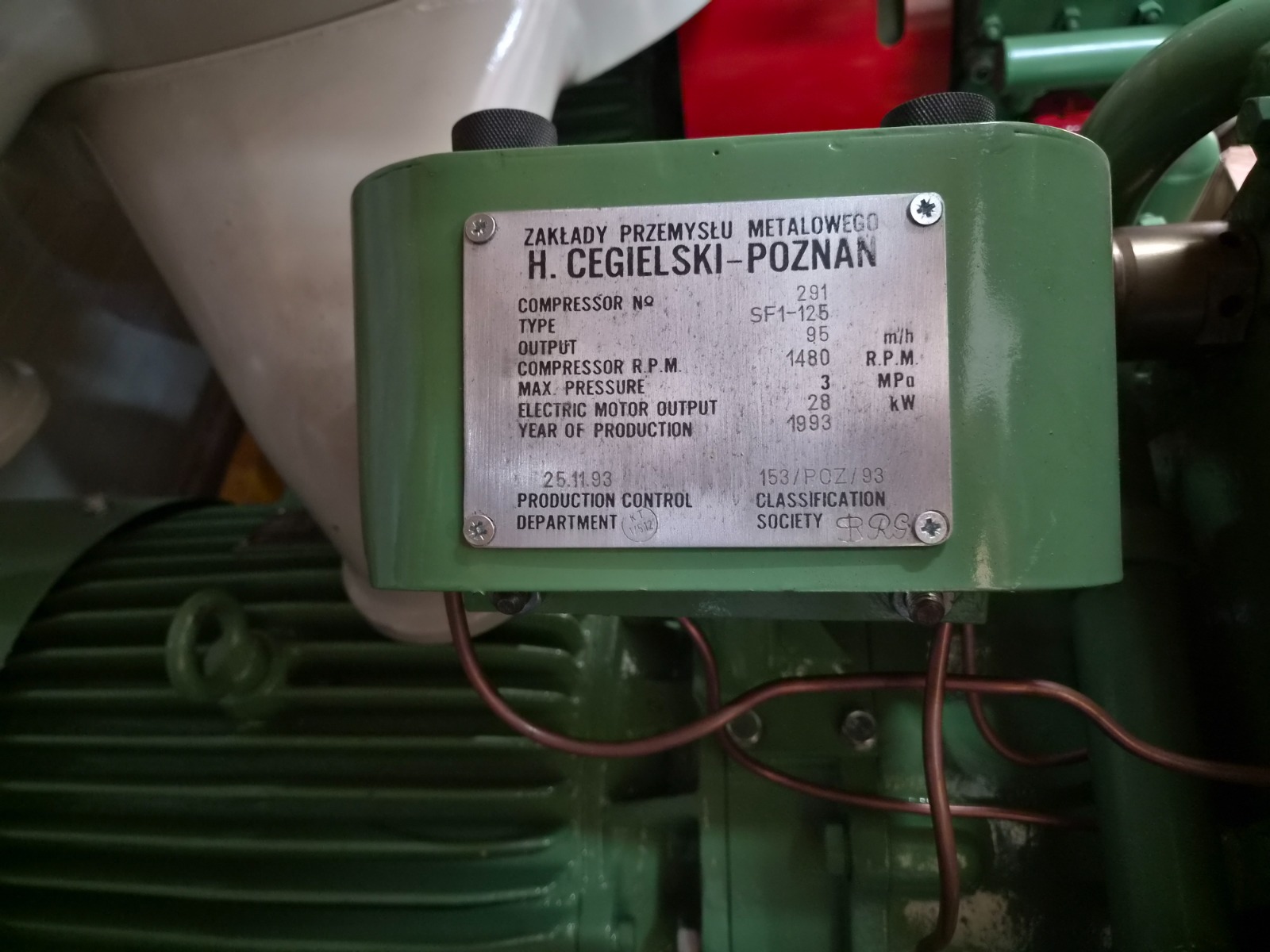

The compressor has a nameplate capacity of 95 m³/h at a compressor speed of 1,480 rpm, with a maximum discharge pressure of 3 MPa (30 bar). The electric motor output specified on the compressor nameplate is 28 kW.

This unit was manufactured in 1993 and is identified by compressor serial number 291.

Technical specifications

Parameter	Details
Manufacturer	H. Cegielski–Poznań / HCP
Model	SF1-125
Compressor serial number	291
Capacity	95 m³/h
Maximum discharge pressure	3 MPa / 30 bar
Compressor speed	1,480 rpm
Electric motor output — compressor nameplate	28 kW
Year of manufacture	1993
Supply configuration	Compressor with electric motor
