HCP SC1-115 Marine Air Compressor – 48 m³/h, 30 bar, with CELMA Motor

HCP SC1-115 Marine Air Compressor – 48 m³/h, 30 bar, with CELMA Motor

Categories: COMPLETE, COMPRESSORS

Part number: M_HCP SC1-115

Availability: In Stock

CONDITION	RENOVATED
KNOWN BRANDS	CEGIELSKI, H. Cegielski–Poznań

Shipping:

Delivery terms: EXW Orle, Poland.
To add shipping please contact us directly.

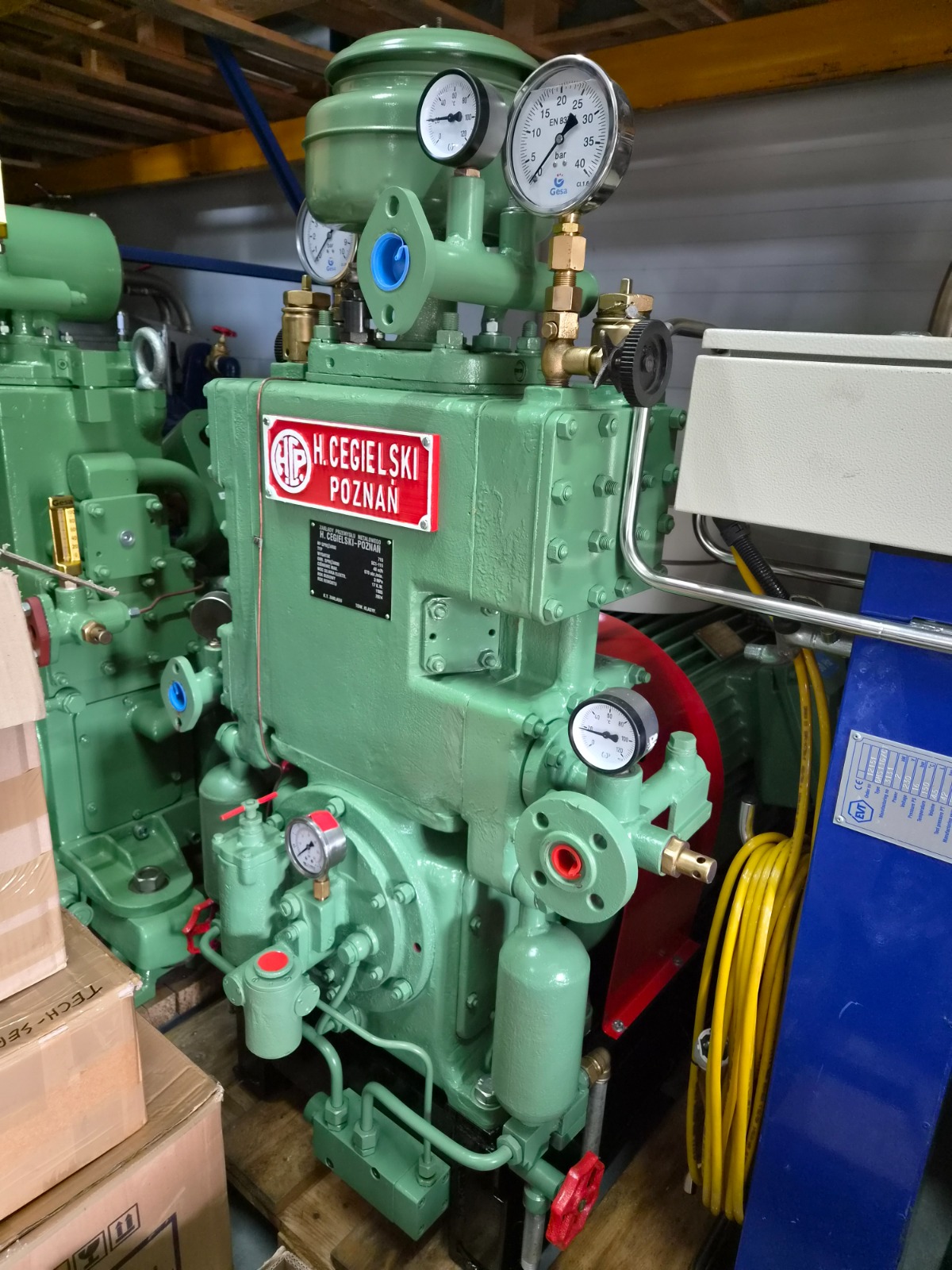

H. Cegielski–Poznań SC1-115 two-stage reciprocating air compressor for marine compressed-air installations. The compressor features a vertical cylinder arrangement and differential piston design, with a nameplate capacity of 48 m³/h and maximum discharge pressure of 30 bar.

The unit is equipped with a CELMA three-phase electric motor rated at 18.5 kW, 400 V, 50 Hz. Local pressure gauges and thermometers allow operating parameters to be monitored.

Manufactured in 1985, the compressor is marked as overhauled in 2024.

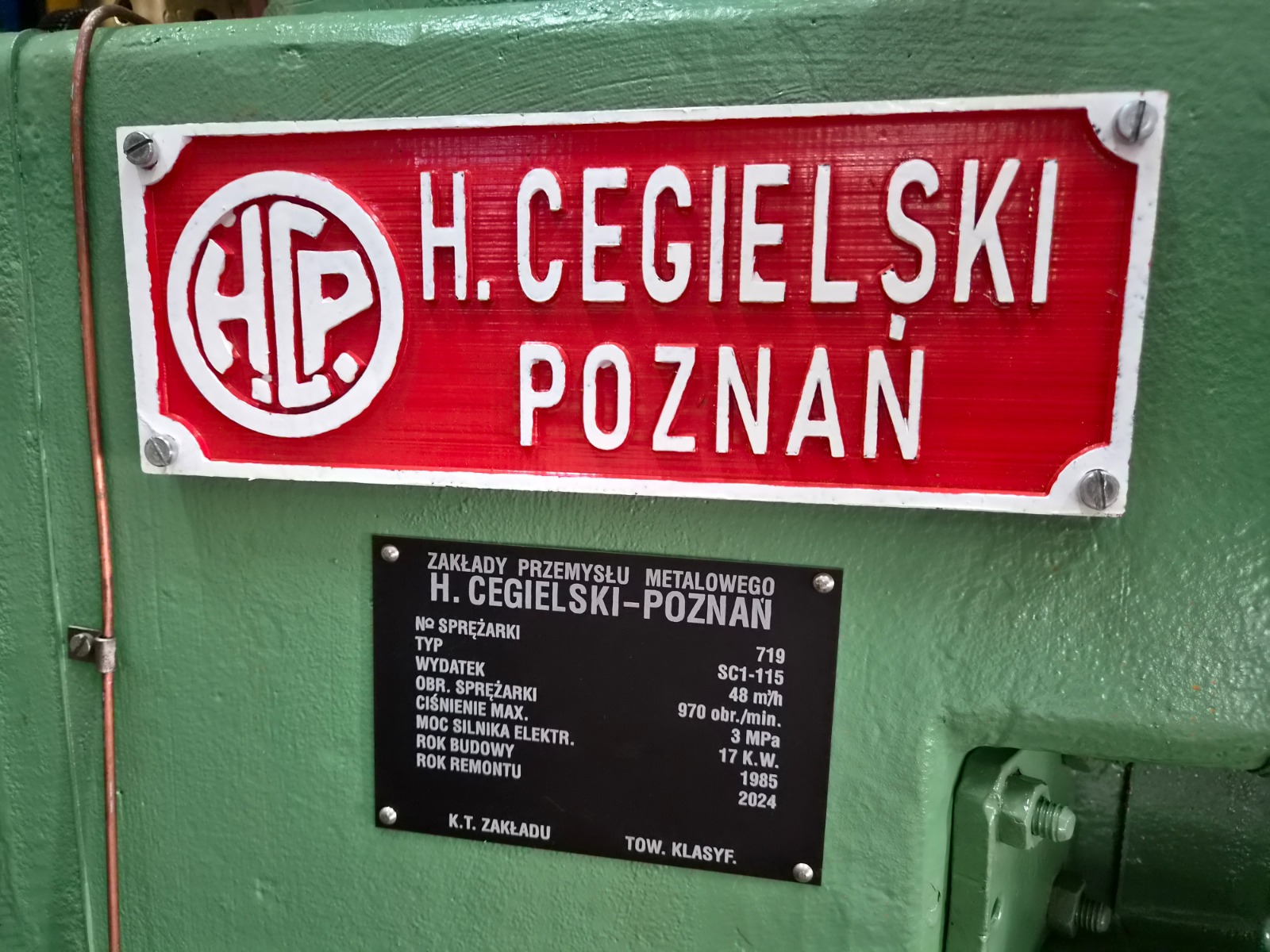

Compressor specifications

Parameter	Details
Manufacturer	H. Cegielski–Poznań / HCP
Model	SC1-115
Serial number	719
Compressor design	Two-stage reciprocating
Capacity	48 m³/h
Maximum discharge pressure	3 MPa / 30 bar
Compressor speed — nameplate	970 rpm
Motor power stated on compressor plate	17 kW
Year of manufacture	1985
Overhaul year — nameplate	2024

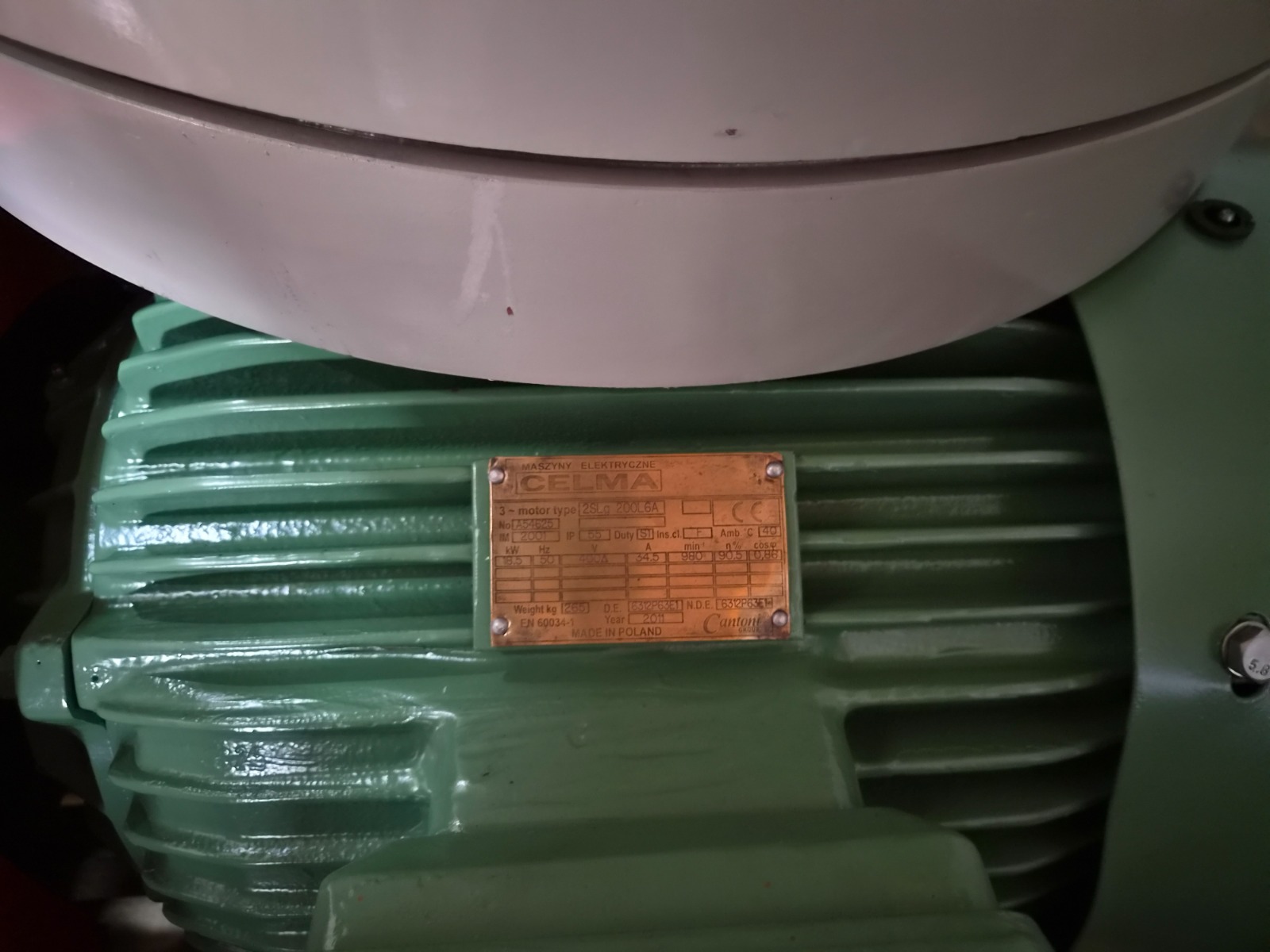

Installed electric motor

Parameter	Details
Manufacturer	CELMA / Cantoni Group
Type	2SLg 200L6A
Rated output	18.5 kW
Power supply	400 V Δ / 50 Hz / 3-phase
Rated current	34.5 A
Rated motor speed	980 rpm
Protection rating	IP55
Insulation class	F
Duty	S1 — continuous
Year of manufacture	2011
Country of manufacture — motor	Poland
